Name: R900413243 DR6DP2-54/210Y Rexroth Pressure Reducing Valve
Brand: Saar HK Electronic Limited
SKU: Р900413243 ДР6ДП2-54/210Й
Price: 950.00 USD
Availability: InStock

Главная страница Продукция Гидравлические клапаны Rexroth

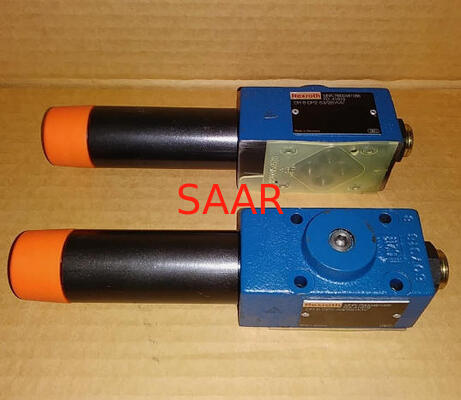

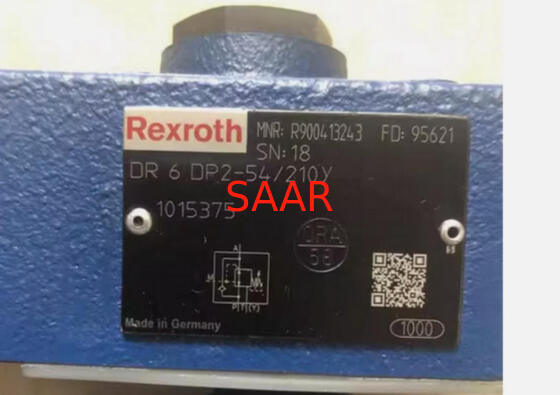

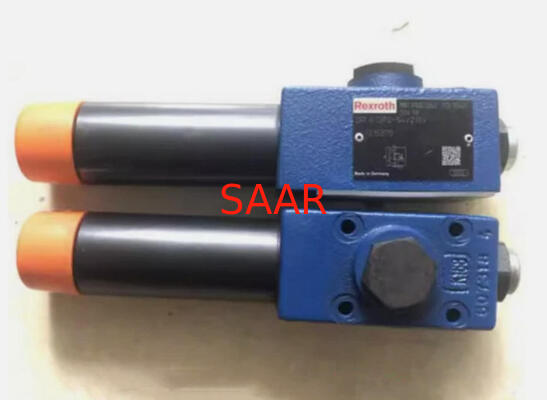

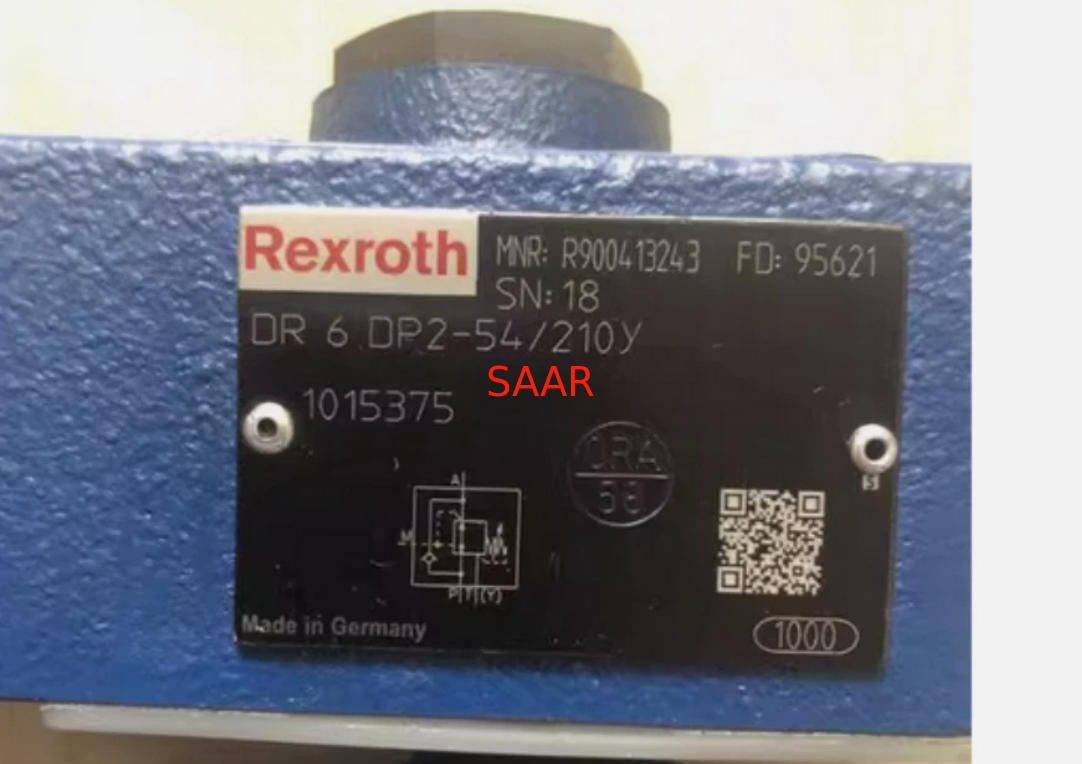

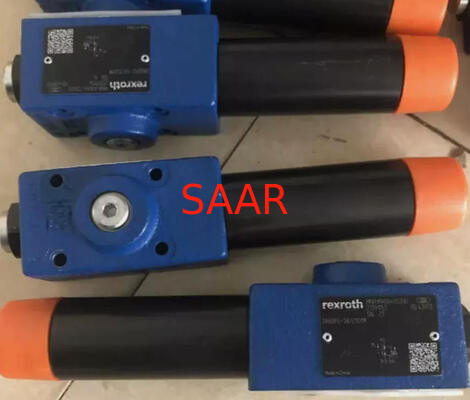

R900413243 DR6DP2-54/210Y Rexroth Pressure Reducing Valve

Подробная информация о продукте:

Место происхождения:	Германия
Фирменное наименование:	Rexroth
Номер модели:	Р900413243 ДР6ДП2-54/210Й

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	On request
Упаковывая детали:	Стандартная бумажная коробка
Время доставки:	7-10 дней
Условия оплаты:	Т/Т, Вестерн Юнион
Поставка способности:	100 шт в месяц

контакт

Подробное описание продукта

Мнр:

р900413243

Модель:

ДР6ДП2-54/210Й

Выделить:

Rexroth pressure reducing valve DR6DP2

hydraulic pressure reducing valve 210Y

Rexroth hydraulic valve with warranty

Rexroth Pressure reducing valve, direct operated DR6DP

Size 6
Component series 5X
Maximum operating pressure 315 bar
Maximum flow 60 l/min

Features
For subplate mounting
Porting pattern according to ISO 4401-03-02-0-05 (with or without loSAARing hole)
5 pressure ratings
4 optional adjustment types:
• Rotary knob
• Threaded pin with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Check valve, optional
Corrosion-protected design

Type Code:

01	02		03		04	05	06	07	08	09	10
DR 6 DP		–	5X	/		Y					*

01	Pressure reducing valve, direct operated, size 6	DR 6 DP
Adjustment type
02	Rotary knob	1
	Grub screw with hexagon and protective cap	2
	Lockable rotary knob with scale	3¹⁾
	Rotary knob with scale	7
03	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
Maximum secondary pressure
04	25 bar	25
	75 bar	75
	150 bar	150
	210 bar	210
	315 bar (Only with adjustment type "2" and without check valve)	315
05	Internal pilot oil supply, external pilot oil return	Y
06	With check valve	no code
06	Without check valve	M
Corrosion resistance
07	None	no code
07	Improved corrosion protection (240 h salt spray test according to EN ISO 9227) (only version "1" and "2")	J3
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
08	NBR seals	no code
08	FKM seals	V
09	Without loSAARing hole	no code
	With loSAARing hole	/60 ²⁾
	With loSAARing hole and locking pin ISO 8752-3x8-St	/62
10	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure reducing valve, direct operated DR6DP on Sale, Short lead time, Best price!!!

R900466591	DR6DP1-52/75YM
R900472190	DR6DP1-53/150Y
R900469278	DR6DP1-53/25Y
R900472190	DR6DP1-5X/150Y
R900458990	DR6DP1-5X/150YM
R900450073	DR6DP1-5X/150YMV
R900431820	DR6DP1-5X/150YMV/12
R900481093	DR6DP1-5X/150YMW5
R900425745	DR6DP1-5X/150YMW74
R900479589	DR6DP1-5X/150YV
R900481034	DR6DP1-5X/210Y
R900401214	DR6DP1-5X/210Y/12
R900475604	DR6DP1-5X/210YM
R900479686	DR6DP1-5X/210YM/12
R900979029	DR6DP1-5X/210YMV
R900469823	DR6DP1-5X/210YMVW5
R900421242	DR6DP1-5X/210YMW5
R900479616	DR6DP1-5X/210YV
R900469278	DR6DP1-5X/25Y
R900424292	DR6DP1-5X/25Y/12
R900479509	DR6DP1-5X/25YM
R900362735	DR6DP1-5X/25YM/12
R900481566	DR6DP1-5X/25YMV
R900479584	DR6DP1-5X/25YV
R900413204	DR6DP1-5X/75Y
R900479617	DR6DP1-5X/75Y/12
R900466591	DR6DP1-5X/75YM
R900459607	DR6DP1-5X/75YMV
R900405822	DR6DP1-5X/75YMVW5
R900424372	DR6DP1-5X/75YMW37
R900481035	DR6DP1-5X/75YMW5
R900452857	DR6DP1-5X/75YV
R900472020	DR6DP2-52/150YM
R900435680	DR6DP2-52/210YMV
R900435686	DR6DP2-53/150YMV
R900413242	DR6DP2-5X/150Y
R900472020	DR6DP2-5X/150YM
R900479792	DR6DP2-5X/150YM/12
R900435686	DR6DP2-5X/150YMV
R900435504	DR6DP2-5X/150YMV/12
R900407273	DR6DP2-5X/150YMVW5
R900401176	DR6DP2-5X/150YMW37
R900479695	DR6DP2-5X/150YMW5
R900474897	DR6DP2-5X/150YV
R900479689	DR6DP2-5X/150YW5
R900431831	DR6DP2-5X/150YW99
R900413243	DR6DP2-5X/210Y
R900455316	DR6DP2-5X/210YM
R900434477	DR6DP2-5X/210YM/12
R900435680	DR6DP2-5X/210YMV
R900432951	DR6DP2-5X/210YMV/12
R900479791	DR6DP2-5X/210YMVW5
R900479790	DR6DP2-5X/210YMW5
R900437373	DR6DP2-5X/210YV
R900481094	DR6DP2-5X/210YVW5
R900465254	DR6DP2-5X/25Y
R900424293	DR6DP2-5X/25Y/12
R900472470	DR6DP2-5X/25YM
R900430658	DR6DP2-5X/25YM/12
R900481068	DR6DP2-5X/25YMV
R900400126	DR6DP2-5X/25YMVW5
R900479789	DR6DP2-5X/25YMW5
R900468219	DR6DP2-5X/25YMW99
R900423025	DR6DP2-5X/25YV
R900478224	DR6DP2-5X/25YW102
R900479694	DR6DP2-5X/25YW5
R900592501	DR6DP2-5X/315YM
R900597846	DR6DP2-5X/315YMV
R900413241	DR6DP2-5X/75Y
R900479788	DR6DP2-5X/75Y/12
R900450964	DR6DP2-5X/75YM
R900433346	DR6DP2-5X/75YM/12
R900475695	DR6DP2-5X/75YM/12W5
R900422809	DR6DP2-5X/75YMV
R900432949	DR6DP2-5X/75YMV/12
R900481091	DR6DP2-5X/75YMVW5
R900440105	DR6DP2-5X/75YMW102
R900479787	DR6DP2-5X/75YMW37
R900469399	DR6DP2-5X/75YMW5
R900457995	DR6DP2-5X/75YMW99
R900425719	DR6DP2-5X/75YV
R900479690	DR6DP2-5X/75YW5
R900444532	DR6DP2-5X/75YW99
R900479809	DR6DP3-5X/150Y
R900476911	DR6DP3-5X/150YM
R900436586	DR6DP3-5X/150YMV
R900396846	DR6DP3-5X/150YMW5
R900478697	DR6DP3-5X/210Y
R900481033	DR6DP3-5X/210YM
R900424503	DR6DP3-5X/210YMW5
R900414524	DR6DP3-5X/210YV
R900479794	DR6DP3-5X/25Y
R900475755	DR6DP3-5X/25YM
R900470040	DR6DP3-5X/25YMV
R900405580	DR6DP3-5X/25YMW5
R900439560	DR6DP3-5X/25YV
R900471146	DR6DP3-5X/25YW102
R900469279	DR6DP3-5X/75Y
R900472420	DR6DP3-5X/75YM
R900456615	DR6DP3-5X/75YM/12
R900429111	DR6DP3-5X/75YMV
R900401177	DR6DP3-5X/75YMW37
R900428937	DR6DP7-5X/150Y
R900479793	DR6DP7-5X/150YM
R900441240	DR6DP7-5X/150YMW74
R900423007	DR6DP7-5X/210Y
R900512734	DR6DP7-5X/25Y
R900460831	DR6DP7-5X/25YMV
R900437119	DR6DP7-5X/75YM
